FMS-DFS
FILTER. PROTECT. TRANSFER.

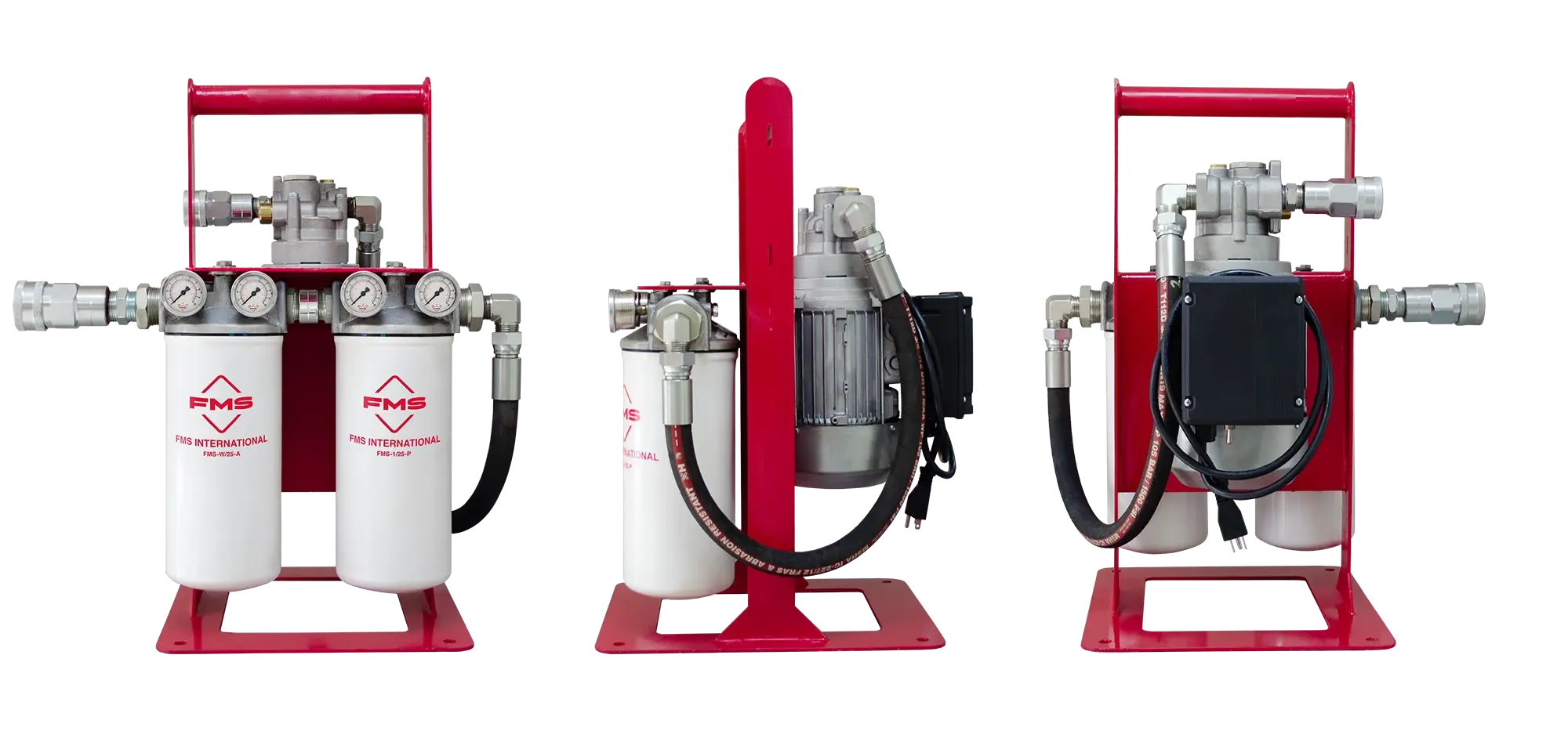

FMS portable unit for diesel fuelfiltration and transfer
DESCRIPTION
Designed to keep your systems free from contamination, this portable and self-contained unit performs fluid dialysis, transfer, or dispensing quickly, safely, and efficiently. Available in HFS (hydraulic oil) and DFS (diesel) versions, it combines high-efficiency filtration with ease of use in the field or workshop.
Key Features:
- Dual-stage filtration: removes solid particles and free water
- Integrated motor pump: no additional equipment required
- Operates on AC or DC power (to be selected)
- Portable, compact, and ready to use
- Suitable for both preventive and corrective maintenance
TECHNICAL SPECIFICATIONS – DFS (DIESEL)
| Flow rating | DFS-15: 15 gpm (AC: 110V) |
| DFS-30: 30 gpm (AC: 110V) | |
| Bypass valve opening | 25 psi (1.7 bar) |
| Element options | FMS-1/25-P, FMS-3/25-P (Particles)
FMS-W25-A (absorbing) |
| Fluid temperature | 25°F a 150°F (-4°C a 65°C) |
| AC Voltage Options | 110V, Single Phase, 60Hz – 230V, Single Phase, 60Hz (50Hz optional) |
| Weight | 85 lbs (Depends on configuration) |
| Compatibility | Diesel fuel |
BENEFITS
| DFS (diesel) |
|---|
| 5–15% increase in engine power output |
| Extended lubricant oil service life |
| Reduced failures and downtime |
| Decreased fuel consumption |
| Prolonged engine service life |
| Extended service life of injection systems and emission post-treatment systems |
