FMS-HFS-4
FILTER. PROTECT. TRANSFER.

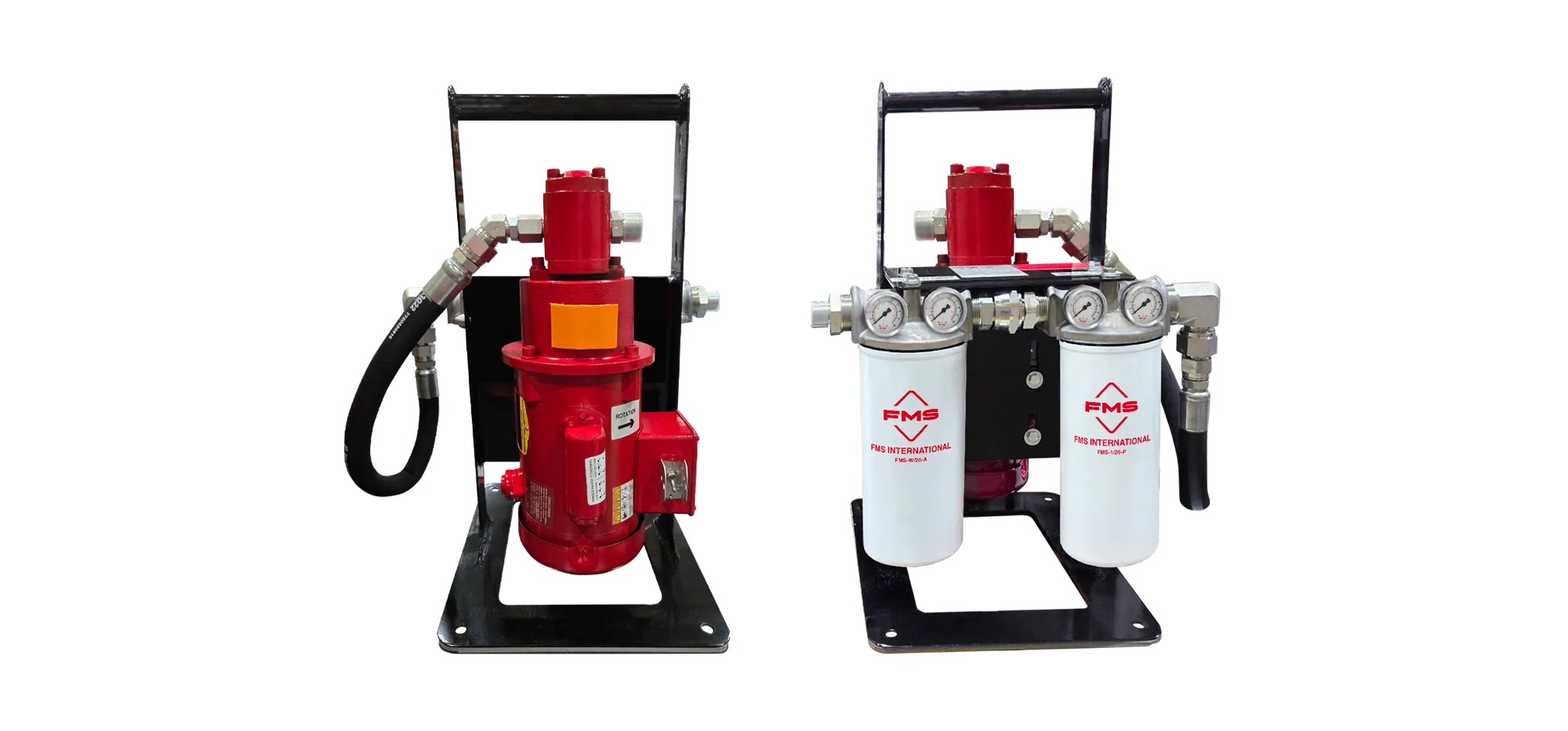

FMS portable unit for hydraulic oilfiltration and transfer
DESCRIPTION
The HFS-4 portable filtration unit is designed for continuous 24/7 operation and can handle oils with viscosities of up to 350 cSt. It is used as a service unit for the transfer, cleaning, and conditioning of oils—both new and in operation—in hydraulic systems. The unit can be configured with two types of filter elements: one for solid particles and another for free water.
TECHNICAL SPECIFICATIONS HFS (HYDRAULIC OIL)
| Flow rating | 4 gpm |
| Bypass valve opening | 25 psi (1.7 bar) |
| Element options | FMS-1/25-P, FMS-3/25-P (particles)
FMS-W25-A (absorbing) |
| Hose pressure rating | 30 psig (2.0 bar) @ 150°F (65.6°C) |
| Total vacuum @ 150°F (65.6°C) | |
| Fluid temperature | 25°F a 150°F (-4°C a 65°C) |
| Hydraulic oil sump | 100 gallons (from ISO 21/20/16 down to 15/13/10 in 60 minutes) |

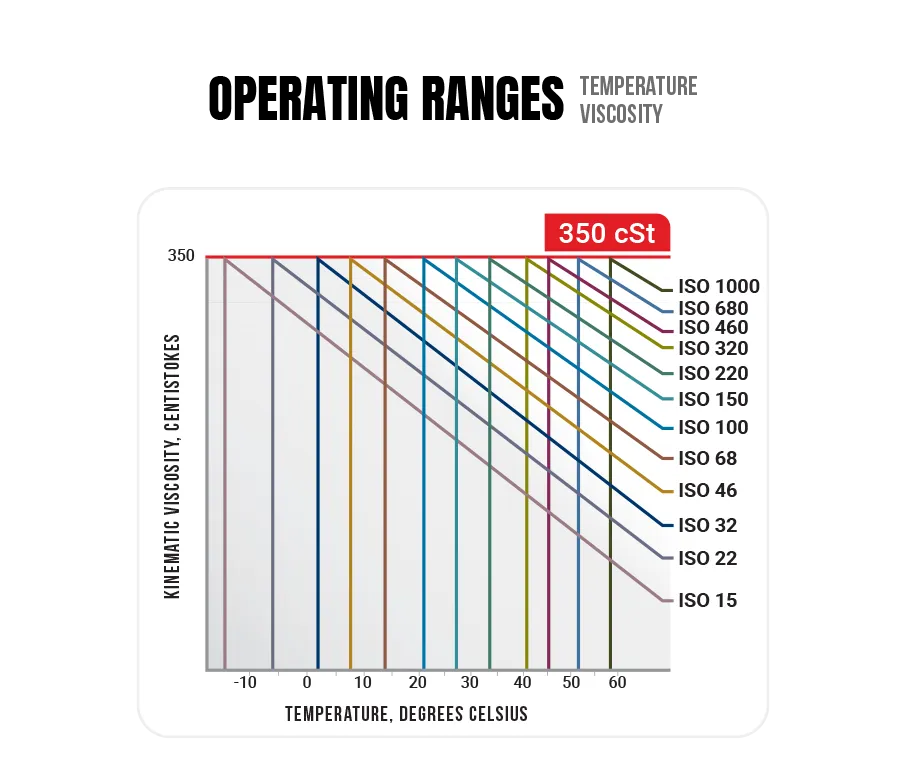

| Maximum viscosity | 350 cSt |
| Voltage | 120V, Single Phase, 60Hz – 230V, Single Phase, 60Hz (50Hz optional) |
| Seal material | Buna N |
| Weight | 85 lbs (depending on configuration) |
| Compatibility | Compatible with all petroleum-based hydraulic fluids |
| Contact factory for use with other fluids |
BENEFITS
| HFS (Hydraulic Oil) |
|---|
| Longer system runtime |
| Lower equipment replacement costs |
| Reduced failures and downtime |
| Lower total fluid costs |
| Reduced maintenance costs |
| Decreased production costs |
