FMS-MK1000
PREVENTIVE MAINTENANCE
MAXIMUM EFFICIENCY
DESCRIPTION
The FMS-MK1000 combines the unmatched capabilities of the OilWear® sensor with an integrated HMI display, delivering real-time machine condition insights directly at the point of operation.
Its advanced sensing technology detects particles and air bubbles as small as 4 microns, classifying them by size range for detailed contamination analysis. This real-time data provides an accurate assessment of machine health based on fluid cleanliness levels and contamination trends.

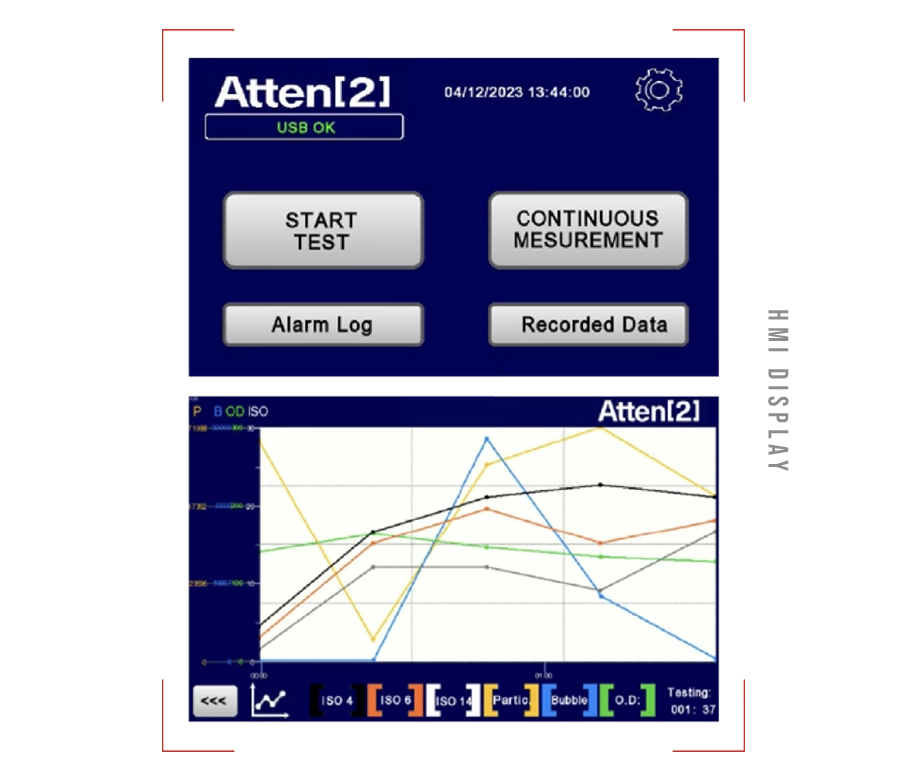

The FMS-MK1000 is a plug-and-play integration kit compatible with all lubrication and hydraulic systems, regardless of manufacturer or design. The integrated HMI display includes all essential functions for system monitoring, real-time data visualization, and data storage and export via USB. In addition, the system can be remotely connected for lubricant-based digital condition monitoring, ensuring comprehensive asset health tracking and enhanced maintenance decision-making.TECHNICAL SPECIFICATIONS
| Power Supply | 24 VDC |
| Power Consumption | 800mA |
| Measured Parameters | ISO 4406 / NAS 1638 Total Particle Count (particles/mL) Air Bubble Detection (bubbles/mL) Shape Classification (particles/mL) Flow Rate (L/min) |
| Alarms | User-configurable alarm thresholds displayed on the HMI screen |
| Digital Output | RJ45 Ethernet (Modbus TCP/IP, FTP) HMI Display |
| Operating Pressure | 2-16 bar – 0-2,5 bar |
| Operating Temperature | -20°C to 70°C |
| Viscosity Range | Up to 540 cSt |
| Fluid Compatibility | Mineral and synthetic oils* |
| Accuracy | ±1 ISO Code |
| Hydraulic Connection | 1/8” BSPPF |
| Dimensions / Weight | 249x400x132 // 5 kg – 249x400x132 // 5,6 kg |
| Materials | Stainless Steel Aluminum Viton® NBR |
| Protection Rating | IP65 |
MEASUREMENT PARAMETERS
- ISO 4406 / NAS 1638 Cleanliness Code
- Total Particle Count (particles/mL)
- Air Bubble Detection (bubbles/mL)
- Particle Shape Classification (particles/mL)
- Lubricant Health Monitoring (OD – Oil Degradation)
