FMS-PB1000
MANTENIMIENTO PREVENTIVO
MÁXIMA EFICIENCIA
DESCRIPTION
The FMS-PB1000 is a portable and rugged solution that incorporates Atten[2] optical technology for particle counting and morphology analysis in lubrication systems.
The FMS-PB1000 leverages OilWear® technology for the detection and classification of particles in any oil system. Air bubble discrimination and particle shape recognition provide key insights to identify root causes of contamination. The system delivers ISO 4406-based cleanliness counts and particle classification across 4, 6, 14, 21, 38, and 70 microns.

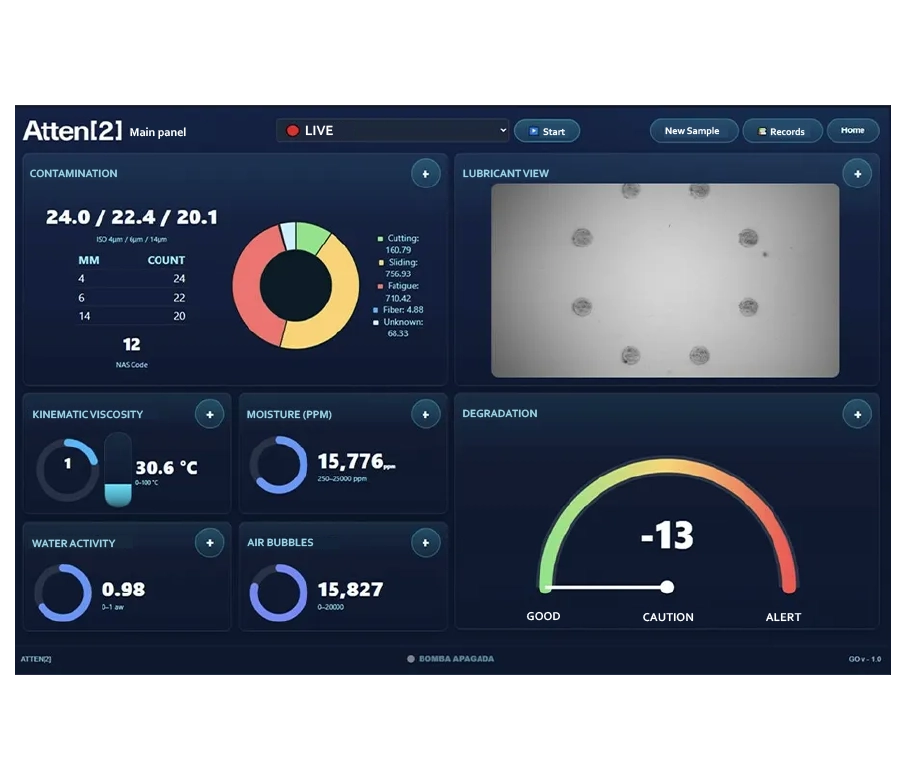

Digital imaging, combined with advanced algorithms, classifies particles into wear categories such as fatigue wear, cutting wear, and sliding wear.
This powerful technology provides unprecedented in-situ insight into oil condition, enabling real-time monitoring of oil health and service life.TECHNICAL SPECIFICATIONS
| Fluid Compatibility | Synthetic oils, organic oils, mineral oils, and diesel fuel (viscosity limit: 680 cSt) |
| Display Information | Particles: ISO 4406, SAE AS4059, and NAS 1638 air bubble removal and particle wear analysis |
| Operating Modes | Live system sampling at high pressure (up to 350 bar) via high-pressure adapter container and tank sampling (up to 2.5 bar) |
| Data | All data is stored locally with off-site backup capability. CSV export available. |
| Calibration | 500 pre-profiled oils also includes self-calibration capability for any oil using a single cycle |
| Dimensions / Weight | 45 x 45 x 45 – 10 kg |
MEASURED PARAMETERS
- Particle counting according to ISO 4406
- Classification across 6 size ranges: >4, >6, >14, >21, >38, and >70 μm
- Air bubble discrimination and counting
- Particle shape analysis (wear diagnosis)
- Lubricant degradation (OD)
- Maximum viscosity: 680 cSt
- Maximum operating pressure: 2.5 bar
*Pressure kit up to 350 bar
